What a strut-channel pipe support is made of

A strut trapeze is five layers: beam clamp, rod, cross channel, channel nuts, pipe clamp. We quote the complete set: beam clamp, rod, channel, nuts and pipe clamp. The rod layer is supplied to order as part of the set — fully threaded rod, rod coupling, and hex nut, 3/8–3/4 in. and M10–M20. Not a catalog part number; quoted as commodity hardware with the set. Where a part on this page takes rod outside that range (J1280, J1280N, M30, and M31), that rod is confirmed at quotation. Clevis hangers and rod eye nuts are not in the catalog pages this site draws on; if your design uses them, list them in the inquiry and they are confirmed at quotation.

This page names the part numbers in each layer and gives the catalog page every one of them is printed on. It is a parts list, not a design. There is not a single load figure on this page — the published ratings live on Clamps and Nuts, and the span tables on Channel. Read them there, where the safety factor is printed beside the number.

Jump to a layer: beam clamps · rod · cross channel · the catalog’s trapeze selection · nuts · pipe clamps · rollers and brackets

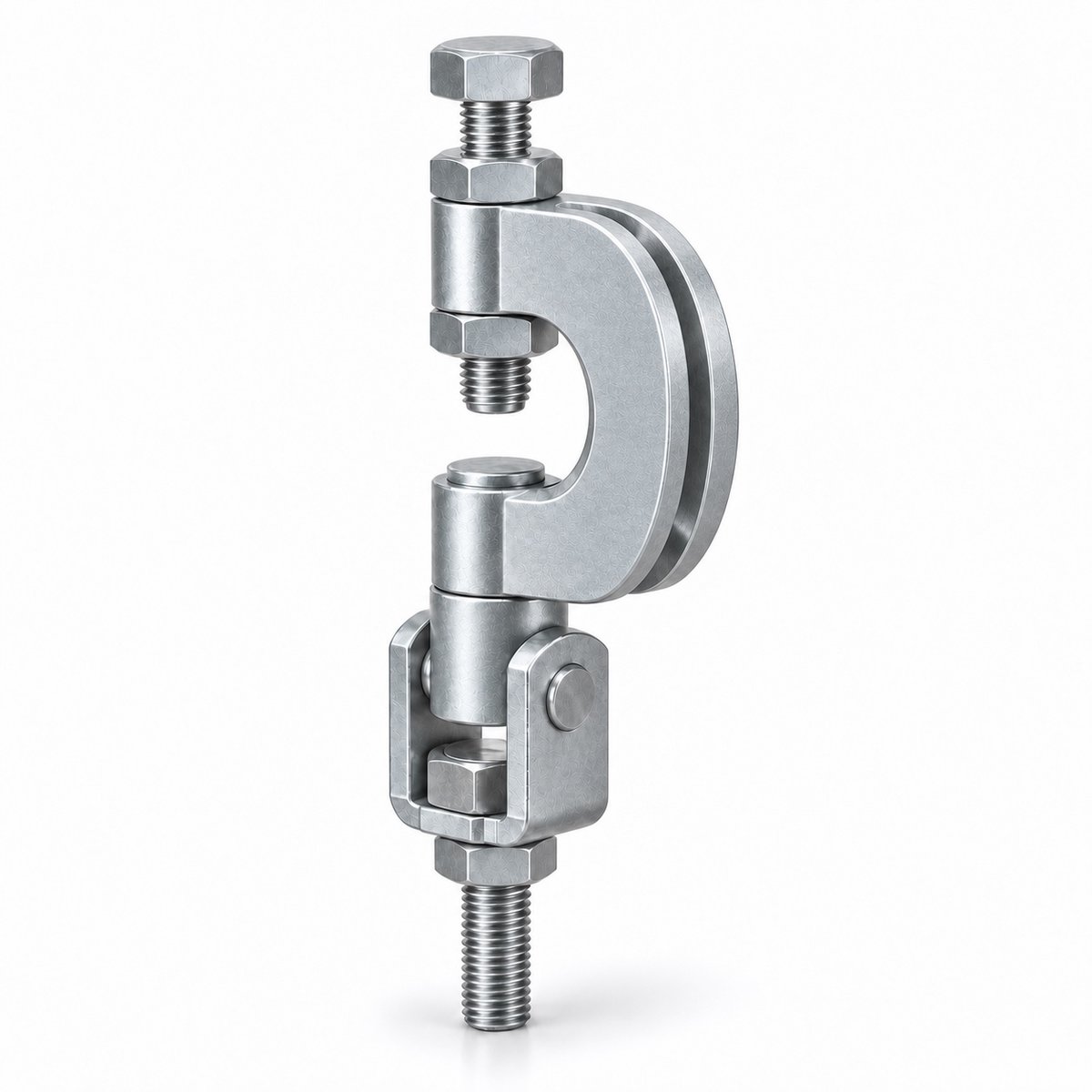

C-type beam clamp with a set screw, for clamping onto the flange of a structural steel beam
P2897 — the top of the support, where the whole assembly meets the building. Rendering from the manufacturer STEP model; not a stock photograph.

Getting the set

1 · Beam clamp
Grips the flange of the structural steel, so nothing has to be drilled or welded. We quote this.
2 · Rod
Carries the cross member down to working height. Supplied to order as part of the set — fully threaded rod, rod coupling and hex nut; sizes below.
3 · Cross channel
The horizontal member the pipes sit on. We quote this.
4 · Channel nuts
Turn into the channel and take the bolt, anywhere along the run. We quote this.
5 · Pipe clamp
Holds the pipe to the channel. Picked from the pipe’s outside diameter, not its trade size. We quote this.

The catalog describes the role of the section as a whole: “Unistrut pipe clamps, pipe hangers, brackets and rollers are designed for the support of electrical and mechanical services.” It names no industry and no building type, and neither do we. Source: Unistrut® General Engineering Catalog no. 17, p. 137 · Verified 2026-09-19

The five layers

1 · Getting onto the structural steel

One of these takes channel directly; the rest take a rod. That is the first fork.

Show the table — 6 rows
PartWhat it isTakesCatalog page
P2784Channel-to-I-beam saddle clamp — three variants by channel seriesChannel: -1 for P1000, P1100, and P2000; -2 for P1001, P1101, and P2001; -3 for P5001 and P5501p. 122
P2897C-type beam clamp3/8 in. rodp. 122
P2675Light-duty C clampRod up to 3/8 in.p. 122
P2676Swivel rod clampRod up to 1/2 in.p. 123
P2898Universal beam clamp — five rod sizes, -37 through -873/8 to 7/8 in. rodp. 123
P2899Wide-throat top beam clamp — four rod sizes, -37 through -753/8 to 3/4 in. rodp. 123

Rod sizes and variants as printed on the catalog pages cited. The descriptions are ours, from the drawings; the page’s own words, where it prints any: P2675 “Clamp P2675 is designed for light duty rod suspension.”; P2676 “Clamp P2676 provides a means of rod suspension where a free swing of up to 15° (0.8π) [sic] is required.”; P2898 “Universal Beam Clamp”; P2899 “WIDE THROAT TOP BEAM CLAMP”. The published maximum loads, the approvals and the angle deratings are on Clamps — beam clamps and are deliberately not repeated here. Source: Unistrut® General Engineering Catalog no. 17, p. 122–123 · Verified 2026-09-28

2 · The rod layer, supplied with the set

The rod layer is supplied to order as part of the set: fully threaded rod, rod coupling, and hex nut, in 3/8–3/4 in. and M10–M20. Not a catalog part number; quoted as commodity hardware with the set — catalog no. 17 prints no number for it, so the rod is specified by diameter, thread and length on the quotation rather than by a P number. Where a part on this page takes rod outside that range (J1280, J1280N, M30, and M31), that rod is confirmed at quotation; those sizes are marked ‡ in the tables below.

Clevis hangers and rod eye nuts are not in the catalog pages this site draws on; if your design uses them, list them in the inquiry and they are confirmed at quotation. What catalog no. 17 does have here is a one-piece rod-suspended hanger that clamps the pipe itself, and two ceiling flanges that receive the rod.

Rod supply — the three items and both size ranges — is our supply, not a catalog figure, and the exact diameter, thread and length are confirmed at quotation.

Show the table — 13 rows
PartPlastic coatedPipe size, in.Rod size “A”, in. (mm)Bolt size “F”, in. (mm)
J1205J1205N1/23/8 (9.5)1/4 x 2-1/4 (6.4 x 57.2)
J1207J1207N3/43/8 (9.5)1/4 x 2-1/4 (6.4 x 57.2)
J1210J1210N*13/8 (9.5)1/4 x 2-1/2 (6.4 x 63.5)
J1212J1212N1-1/43/8 (9.5)1/4 x 2-3/4 (6.4 x 69.9)
J1215J1215N*1-1/23/8 (9.5)1/4 x 3 (6.4 x 76.2)
J1220J1220N*23/8 (9.5)1/4 x 3-1/2 (6.4 x 88.9)
J1225J1225N2-1/21/2 (12.7)3/8 x 4-1/2 (9.5 x 114.3)
J1230J1230N*31/2 (12.7)3/8 x 5 (9.5 x 127.0)
J1235J1235N3-1/21/2 (12.7)3/8 x 6 (9.5 x 152.4)
J1240J1240N*45/8 (15.9)3/8 x 6 (9.5 x 152.4)
J1250J1250N55/8 (15.9)3/8 x 7-1/2 (9.5 x 190.5)
J1260J1260N*63/4 (19.1)3/8 x 8-1/2 (9.5 x 215.9)
J1280J1280N87/8 (22.2)‡3/8 x 10 (9.5 x 254.0)

The J series is the catalog’s “J” Conduit & Pipe Hanger: “Hanger Rod Suspended”, “‘T’ Bolt and Nut Included”; the N suffix is the plastic-coated version (“Plastic Coated (‘N’ Suffix)”). The asterisk is printed against six N part numbers: “Standard glass drainline and glass process pipe sizes.” The catalog notes a maximum operating temperature of 300°F (148.8°C), printed once for the page rather than against a row. Pipe size is the nominal size, printed in inches only. The load column printed beside each row is not reproduced here. ‡ Rod size outside the range we supply with the set; that rod is confirmed at quotation. There is no page of our own for the J series — these numbers are the catalog page and nothing more. Source: Unistrut® General Engineering Catalog no. 17, p. 149 · Verified 2026-09-28

At the ceiling end, M30 and M31 swivel ceiling flanges receive the rod; the table gives the mounting bolt, the hole and the rod sizes each one takes. The rod between them and the hanger comes with the set, on the terms above.

Show the table — 2 rows
PartMounting boltHole “H”, in. (mm)Hanger rods, in.Mounting holes on center, in. (mm)Length, in. (mm)Material
M303/8 in.7/16 (11.1)3/8, 1/2, 5/8, 3/4, 7/8‡3-1/4 (82.6)4-5/8 (117.5)Malleable iron
M311/2 in.9/16 (14.3)3/8, 1/2, 5/8, 3/4, 7/8‡3-1/4 (82.6)4-5/8 (117.5)Malleable iron

Both parts share one drawing and differ only in the mounting bolt and hole “H”; the rod sizes are the page’s own “Supports … hanger rods” note; ‡ marks a size outside the rod range we supply with the set. The swivel angles drawn on the page and the design load column are not reproduced. Source: Unistrut® General Engineering Catalog no. 17, p. 150 · Verified 2026-09-27

3 · Choosing the cross channel

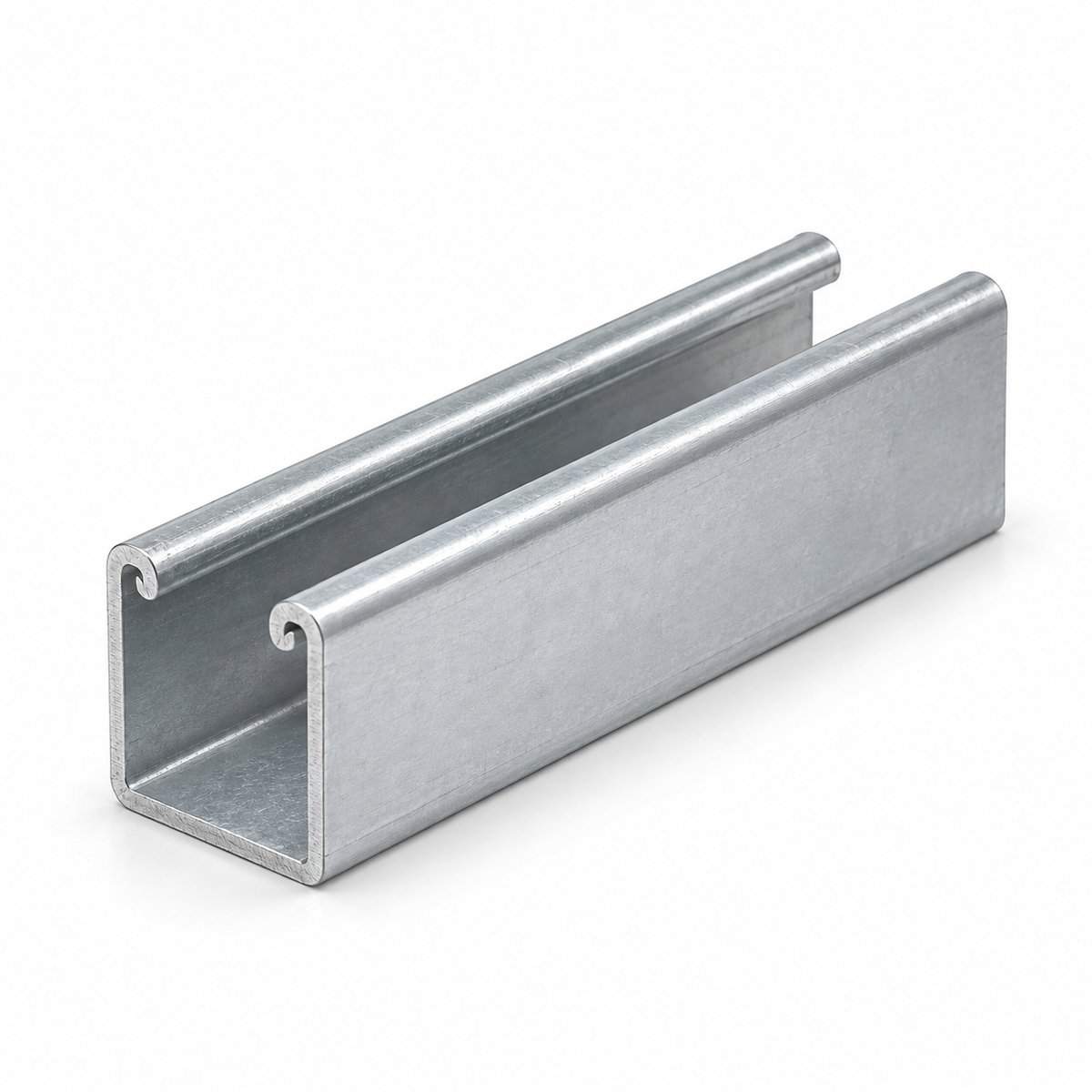

Length of P1000 strut channel, open face up, the cross member used to build the table below

Geometry only below. Which section a given run needs is a span question, and the span tables are on the channel page.

Show the table — 8 rows
SeriesTypeProfile, in. (mm)GaugeSteel, in. (mm)Trapeze tables, p. 156–157
P3000Single1-5/8 x 1-3/8 (41.3 x 34.9)12 ga0.105 (2.7)Single-channel
P1000Single1-5/8 x 1-5/8 (41.3 x 41.3)12 ga0.105 (2.7)Single-channel
P5500Single1-5/8 x 2-7/16 (41.3 x 61.9)12 ga0.105 (2.7)Single-channel
P5000Single1-5/8 x 3-1/4 (41.3 x 82.6)12 ga0.105 (2.7)Single-channel
P3001Back-to-back1-5/8 x 2-3/4 (41.3 x 69.9)12 ga0.105 (2.7)Double-channel
P1001Back-to-back1-5/8 x 3-1/4 (41.3 x 82.6)12 ga0.105 (2.7)Double-channel
P5501Back-to-back1-5/8 x 4-7/8 (41.3 x 123.8)12 ga0.105 (2.7)Double-channel
P5001Back-to-back1-5/8 x 6-1/2 (41.3 x 165.1)12 ga0.105 (2.7)Double-channel

These are the eight series the catalog’s sprinkler trapeze tables on p. 156–157 select from, listed because those tables use them rather than picked by us; which one a given span and pipe size calls for is in the next table. The full eighteen, with the span-versus-load table, are on Channel. Profile and steel thickness are the catalog specification for the reference series — inches from each series page, millimeters from p. 21 — not our supply thickness, which is quoted on its own line. Source: Unistrut® General Engineering Catalog no. 17, p. 21, 25, 40, 53, 56, 156, and 157 · Verified 2026-09-28

The catalog’s own trapeze selection, for sprinkler pipe

For one case the catalog does the selection itself: a trapeze carrying sprinkler pipe. It prints which channel to use for a given span and pipe size. The tables are reproduced here as selections only; they are not a rating for any other load.

Four tables: single-channel and double-channel trapeze, each for Schedule 10 and Schedule 40 pipe. Rows are trapeze spans, columns nominal pipe diameters; each cell is the channel the catalog selects for that pair. The single-channel tables use P1000, P3000, P5000, and P5500; the double-channel tables use P1001, P3001, P5001, and P5501, all back-to-back. The two double-channel tables print the same selection cell for cell.

Single channel trapeze for Sch 10 pipe, p. 156 — 11 rows
Span1 in.1-1/4 in.1-1/2 in.2 in.2-1/2 in.3 in.3-1/2 in.4 in.5 in.6 in.8 in.10 in.
1 ft 6 in. (≈457.2 mm)P3000P3000P3000P3000P3000P3000P3000P3000P3000P1000P5500P5500
2 ft (≈609.6 mm)P3000P3000P3000P3000P3000P3000P1000P1000P1000P5500P5500P5000
2 ft 6 in. (≈762.0 mm)P3000P3000P3000P1000P1000P1000P1000P5500P5500P5500P5000P5000
3 ft (≈914.4 mm)P1000P1000P1000P1000P1000P5500P5500P5500P5500P5500P5000N/A
4 ft (≈1219.2 mm)P5500P5500P5500P5500P5500P5500P5500P5500P5000P5000N/AN/A
5 ft (≈1524.0 mm)P5500P5500P5500P5500P5500P5500P5000P5000P5000P5000N/AN/A
6 ft (≈1828.8 mm)P5500P5500P5500P5500P5000P5000P5000P5000P5000N/AN/AN/A
7 ft (≈2133.6 mm)P5500P5000P5000P5000P5000P5000P5000P5000N/AN/AN/AN/A
8 ft (≈2438.4 mm)P5000P5000P5000P5000P5000P5000N/AN/AN/AN/AN/AN/A
9 ft (≈2743.2 mm)P5000P5000P5000P5000P5000N/AN/AN/AN/AN/AN/AN/A
10 ft (≈3048.0 mm)P5000P5000P5000N/AN/AN/AN/AN/AN/AN/AN/AN/A
Double channel trapeze for Sch 10 pipe, p. 156 — 11 rows
Span1 in.1-1/4 in.1-1/2 in.2 in.2-1/2 in.3 in.3-1/2 in.4 in.5 in.6 in.8 in.10 in.
1 ft 6 in. (≈457.2 mm)P3001P3001P3001P3001P3001P3001P3001P3001P3001P3001P3001P3001
2 ft (≈609.6 mm)P3001P3001P3001P3001P3001P3001P3001P3001P3001P3001P3001P1001
2 ft 6 in. (≈762.0 mm)P3001P3001P3001P3001P3001P3001P3001P3001P3001P3001P1001P5501
3 ft (≈914.4 mm)P3001P3001P3001P3001P3001P3001P3001P3001P3001P3001P5501P5501
4 ft (≈1219.2 mm)P3001P3001P3001P3001P3001P3001P3001P3001P1001P5501P5501P5501
5 ft (≈1524.0 mm)P3001P3001P3001P3001P3001P3001P1001P1001P5501P5501P5501P5001
6 ft (≈1828.8 mm)P3001P3001P3001P3001P1001P1001P1001P5501P5501P5501P5001P5001
7 ft (≈2133.6 mm)P3001P3001P3001P1001P1001P5501P5501P5501P5501P5501P5001N/A
8 ft (≈2438.4 mm)P1001P1001P1001P1001P5501P5501P5501P5501P5501P5001P5001N/A
9 ft (≈2743.2 mm)P1001P1001P1001P5501P5501P5501P5501P5501P5501P5001N/AN/A
10 ft (≈3048.0 mm)P1001P5501P5501P5501P5501P5501P5501P5501P5001P5001N/AN/A
Single channel trapeze for Sch 40 pipe, p. 157 — 11 rows
Span1 in.1-1/4 in.1-1/2 in.2 in.2-1/2 in.3 in.3-1/2 in.4 in.5 in.6 in.8 in.10 in.
1 ft 6 in. (≈457.2 mm)P3000P3000P3000P3000P3000P3000P3000P3000P1000P5500P5500P5000
2 ft (≈609.6 mm)P3000P3000P3000P3000P3000P1000P1000P1000P5500P5500P5000P5000
2 ft 6 in. (≈762.0 mm)P3000P3000P3000P1000P1000P5500P5500P5500P5500P5500P5000N/A
3 ft (≈914.4 mm)P1000P1000P1000P1000P5500P5500P5500P5500P5500P5000P5000N/A
4 ft (≈1219.2 mm)P5500P5500P5500P5500P5500P5500P5500P5000P5000P5000N/AN/A
5 ft (≈1524.0 mm)P5500P5500P5500P5500P5500P5000P5000P5000P5000N/AN/AN/A
6 ft (≈1828.8 mm)P5500P5500P5500P5500P5000P5000P5000P5000N/AN/AN/AN/A
7 ft (≈2133.6 mm)P5500P5000P5000P5000P5000P5000N/AN/AN/AN/AN/AN/A
8 ft (≈2438.4 mm)P5000P5000P5000P5000P5000N/AN/AN/AN/AN/AN/AN/A
9 ft (≈2743.2 mm)P5000P5000P5000P5000N/AN/AN/AN/AN/AN/AN/AN/A
10 ft (≈3048.0 mm)P5000P5000P5000N/AN/AN/AN/AN/AN/AN/AN/AN/A
Double channel trapeze for Sch 40 pipe, p. 157 — 11 rows
Span1 in.1-1/4 in.1-1/2 in.2 in.2-1/2 in.3 in.3-1/2 in.4 in.5 in.6 in.8 in.10 in.
1 ft 6 in. (≈457.2 mm)P3001P3001P3001P3001P3001P3001P3001P3001P3001P3001P3001P3001
2 ft (≈609.6 mm)P3001P3001P3001P3001P3001P3001P3001P3001P3001P3001P3001P1001
2 ft 6 in. (≈762.0 mm)P3001P3001P3001P3001P3001P3001P3001P3001P3001P3001P1001P5501
3 ft (≈914.4 mm)P3001P3001P3001P3001P3001P3001P3001P3001P3001P3001P5501P5501
4 ft (≈1219.2 mm)P3001P3001P3001P3001P3001P3001P3001P3001P1001P5501P5501P5501
5 ft (≈1524.0 mm)P3001P3001P3001P3001P3001P3001P1001P1001P5501P5501P5501P5001
6 ft (≈1828.8 mm)P3001P3001P3001P3001P1001P1001P1001P5501P5501P5501P5001P5001
7 ft (≈2133.6 mm)P3001P3001P3001P1001P1001P5501P5501P5501P5501P5501P5001N/A
8 ft (≈2438.4 mm)P1001P1001P1001P1001P5501P5501P5501P5501P5501P5001P5001N/A
9 ft (≈2743.2 mm)P1001P1001P1001P5501P5501P5501P5501P5501P5501P5001N/AN/A
10 ft (≈3048.0 mm)P1001P5501P5501P5501P5501P5501P5501P5501P5001P5001N/AN/A

N/A is the catalog’s own entry; its note reads “An entry of ‘–’ indicates that the channel cannot be used for this span/pipe size combination.”, and the tables print it as N/A. The selections are, in the catalog’s words, “Based on NFPA-13-1996 Section Modulus Table 3-10.1.7(a).” The loading assumptions stated in the same note, and the section-modulus tables printed beside the selections, are design values and are not reproduced here. Spans in millimeters are computed from the printed feet and inches (1 in. = 25.4 mm) and marked ≈; pipe diameters are nominal sizes. The pages are headed “Channel Selection for Schedule 10 Sprinkler Pipe Trapeze Hangers” and “Channel Selection for Schedule 40 Sprinkler Pipe Trapeze Hangers”. Source: Unistrut® General Engineering Catalog no. 17, p. 156–157 · Verified 2026-09-28

4 · Matching the channel nut to the channel

P1010 spring channel nut, the standard-thread nut that fits into the cross channel

The families split by how deep the channel is. Getting this wrong is the most common way a trapeze will not go together on site.

Show the table — 8 rows
Nut familyPart numbersThreadsFits channelCatalog page
Standard, with springP1006-0832 through P1010; P1012S, P1023S, and P1024S#8-32 to 7/8 in.-9P1000, P1100, P2000, P3000p. 78
Shallow, with springP4006-0832 through P4010; P4012S and P4023S#8-32 to 3/4 in.-10P3300, P4000, P4100p. 78
Deep, with springP5506-0832 through P5510#8-32 to 1/2 in.-13P5500p. 78
Flat, without springP3016-0632, P3016-0832, P3016-1024, and P3016-1420#6-32 to 1/4 in.-20P1000, P1100, P2000, P3000, P3300, P4000, P4100, P5000, P5500p. 79
Standard, without springP3006-0832 through P3013#8-32 to 1/2 in.-13P1000, P1100, P2000, P3000, P3300, P4000, P4100, P5000, P5500
P3010: not P3300, P4000, P4100; P3013: P3300, P4000, P4100 only
p. 79
Large thread, without springP1012, P1023, and P10245/8 in.-11 to 7/8 in.-9P1000, P1100, P2000, P3000, P5000, P5500p. 79
Large thread, for shallow channel, without springP4012 and P40235/8 in.-11 to 3/4 in.-10P3300, P4000, P4100p. 79
T series, without springP1006T1420, P1008T, P1010T, and P4010T1/4 in.-20 to 1/2 in.-13P1000, P1100, P2000, P3000, P3300, P4000, P4100, P5000, P5500
P1010T: not P3300, P4000, P4100; P4010T: P3300, P4000, P4100 only
p. 79

Fits is the “For Use With Channel” chart printed beside each nut, where a filled square marks “Acceptable for use”; a part named under a row fits differently from the rest of its family. The charts list single channels only. The 47 part numbers in this table are on Nuts, one per row, with their published ratings. P4908, the Double Conveyor Adjusting Nut, which p. 79 also prints, is in neither. Source: Unistrut® General Engineering Catalog no. 17, p. 78–79 · Verified 2026-09-28

5 · Clamping the pipe

Pick by the pipe’s outside diameter, never by the trade size on the drawing — that is the whole reason there are two series.

Show the table — 3 rows
SeriesPrinted asRangeCatalog page
P1109 – P1126Pipe Clamps for Rigid Steel Conduit3/8 in. through 8 in., 14 part numbersp. 139
P1425 – P1431Pipe Clamps for Thin Wall Conduit (E.M.T.)3/8 in. through 2 in., 7 part numbersp. 139
P1118 – P1121The rigid clamps again, printed as the last four rows of the E.M.T. table — EMT above 2 in.2-1/2 in. through 4 in.p. 139

Every outside diameter, gauge and published design load is in the two tables on Clamps. Source: Unistrut® General Engineering Catalog no. 17, p. 139 · Verified 2026-09-28

The UB series is not a strut part. Catalog p. 148 lists UB1/2PA through UB12PA, the CUSH-A-CLAMP® Assembly U-Bolt Series: 15 part numbers for 1/2 in. through 12 in. pipe. The page says “Includes U bolt, cushion, and hardware.” and prints the materials as U bolt “Electro-galvanized finish or Type 316SS” and cushion “Thermoplastic elastomer.” The same page carries the warning in its own words: “Not intended for use with metal framing components due to the length of the thread.” It is listed here so the series is recognized and then set aside.

Show the table — 15 rows
PartPipe size, nominal, in.“A”, in. (mm)“B”, in. (mm)“C”, in. (mm)“D”, in. (mm)“E”, in. (mm)“F”, in. (mm)“H”
UB1/2PA1/20.84 (21.3)1.60 (40.6)0.68 (17.3)1.5 (38.1)0.67 (17.0)1/4 (6.4)1/4-20 UNC-2B
UB3/4PA3/41.05 (26.7)1.80 (45.7)0.68 (17.3)1.6 (40.6)0.78 (19.8)1/4 (6.4)1/4-20 UNC-2B
UB1PA11.31 (33.3)2.05 (52.1)0.68 (17.3)1.7 (43.2)0.91 (23.1)1/4 (6.4)1/4-20 UNC-2B
UB1-1/4PA1-1/41.66 (42.2)2.54 (64.5)1.24 (31.5)2.1 (53.3)1.08 (27.4)3/8 (9.5)3/8-16 UNC-2B
UB1-1/2PA1-1/21.90 (48.3)2.78 (70.6)1.24 (31.5)2.2 (55.9)1.19 (30.2)3/8 (9.5)3/8-16 UNC-2B
UB2PA22.37 (60.2)3.32 (84.3)1.24 (31.5)2.5 (63.5)1.45 (36.8)3/8 (9.5)3/8-16 UNC-2B
UB2-1/2PA2-1/22.87 (72.9)3.88 (98.6)1.24 (31.5)3.0 (76.2)1.69 (42.9)1/2 (12.7)1/2-13 UNC-2B
UB3PA33.50 (88.9)4.50 (114.3)1.24 (31.5)3.3 (83.8)2.00 (50.8)1/2 (12.7)1/2-13 UNC-2B
UB3-1/2PA3-1/24.00 (101.6)5.00 (127.0)1.24 (31.5)3.7 (94.0)2.25 (57.2)1/2 (12.7)1/2-13 UNC-2B
UB4PA44.50 (114.3)5.50 (139.7)1.24 (31.5)3.9 (99.1)2.5 (63.5)1/2 (12.7)1/2-13 UNC-2B
UB5PA55.56 (141.2)6.59 (167.4)1.24 (31.5)4.5 (114.3)3.03 (77.0)1/2 (12.7)1/2-13 UNC-2B
UB6PA66.62 (168.1)7.81 (198.4)1.44 (36.6)5.4 (137.2)3.56 (90.4)5/8 (15.9)5/8-11 UNC-2B
UB8PA88.62 (218.9)9.84 (249.9)1.44 (36.6)6.4 (162.6)4.56 (115.8)5/8 (15.9)5/8-11 UNC-2B
UB10PA1010.75 (273.1)12.25 (311.2)1.65 (41.9)7.7 (195.6)5.68 (144.3)3/4 (19.1)3/4-10 UNC-2B
UB12PA1212.75 (323.9)14.25 (362.0)1.65 (41.9)8.7 (221.0)6.68 (169.7)3/4 (19.1)3/4-10 UNC-2B

Letters A to F are the dimensions as lettered on the page’s two drawings, one for the 1/2 in. through 6 in. assemblies and one for 8 in. through 12 in.; the page does not name them in words and neither do we. H is printed as a thread callout, not a length. What the PA suffix stands for is not printed on the page. Source: Unistrut® General Engineering Catalog no. 17, p. 148 · Verified 2026-09-27

Rollers and brackets, where the pipe has to move

A long run that grows and shrinks needs a roller rather than a clamp. These are the catalog’s, in the same section, with the dimension that decides which one fits.

Show the table — 7 rows
PartPipe rangeDimension “A”, in. (mm)Bolts and channel nuts, per assemblySoldCatalog page
P24741/2 in. to 4 in.From the chart below, p. 1502 each: 1/2 x 15/16 in. bolts, 1/2 in. channel nutsIn pairsp. 150
P2474-1From the chart below, p. 1516-3/4 (171.5)2 each: 1/2 x 15/16 in. bolts, 1/2 in. channel nutsShipped loosep. 151
P2474-2From the chart below, p. 1517-1/2 (190.5)2 each: 1/2 x 15/16 in. bolts, 1/2 in. channel nutsShipped loosep. 151
P2474-3From the chart below, p. 1518-1/2 (215.9)2 each: 1/2 x 15/16 in. bolts, 1/2 in. channel nutsShipped loosep. 151
P2474-4From the chart below, p. 1519-9/16 (242.9)2 each: 1/2 x 15/16 in. bolts, 1/2 in. channel nutsShipped loosep. 151
P24756 in. to 16 in.From the chart below, p. 1522 each: 1/2 x 15/16 in. bolts, 1/2 in. channel nutsIn pairsp. 152
P247616 in. to 24 in.From the chart below, p. 1524 each: 1/2 x 15/16 in. bolts, 1/2 in. channel nutsNot statedp. 152

Printed with each: “Saddle by others.” on every one of these pages; cast-iron rollers for P2474, P2475, and P2476; and “Pipe roller will fit standard saddles.” for P2474-1, P2474-2, P2474-3, and P2474-4. Bolts and channel nuts are sold separately. The heading on p. 151 reads “Pipe Roller for 1 in. - 8 in. Pipe”, while the selection chart below it starts at 1/2 in.; both are printed as shown and we do not pick one. Design loads printed on those pages are not reproduced here — see what we do not publish. Source: Unistrut® General Engineering Catalog no. 17, p. 150–152 · Verified 2026-09-28

P2474 — Chart for Dimension A, p. 150 — 10 rows
Pipe size, in.No insulation1 in. (25.4 mm)1-1/2 in. (38.1 mm)2 in. (50.8 mm)2-1/2 in. (63.5 mm)3 in. (76.2 mm)4 in. (101.6 mm)
1/26-1/2 (165.1)6-1/2 (165.1)
3/46-1/2 (165.1)6-1/2 (165.1)6-5/8 (168.3)6-7/8 (174.6)
16-1/2 (165.1)6-1/2 (165.1)6-5/8 (168.3)6-7/8 (174.6)
1-1/46-1/2 (165.1)6-1/2 (165.1)6-7/8 (174.6)7-1/8 (181.0)7-3/8 (187.3)
1-1/26-1/2 (165.1)6-1/2 (165.1)6-7/8 (174.6)7-1/8 (181.0)7-3/8 (187.3)
26-1/2 (165.1)6-5/8 (168.3)7-1/8 (181.0)7-3/8 (187.3)7-1/2 (190.5)8 (203.2)
2-1/26-1/2 (165.1)6-5/8 (168.3)7-1/8 (181.0)7-3/8 (187.3)7-1/2 (190.5)8 (203.2)
36-1/2 (165.1)7 (177.8)7-1/2 (190.5)7-3/4 (196.9)7-7/8 (200.0)8-1/8 (206.4)
3-1/26-1/2 (165.1)7 (177.8)7-1/2 (190.5)7-3/4 (196.9)7-7/8 (200.0)8-1/8 (206.4)
46-5/8 (168.3)7-1/4 (184.2)7-5/8 (193.7)7-7/8 (200.0)8 (203.2)8-3/8 (212.7)9 (228.6)
P2474-1 through P2474-4 — Chart for Roller Part Number Selection, p. 151 — 13 rows
Pipe size, in.No insulation1 in. (25.4 mm)1-1/2 in. (38.1 mm)2 in. (50.8 mm)2-1/2 in. (63.5 mm)3 in. (76.2 mm)4 in. (101.6 mm)
1/2P2474-1P2474-1P2474-1P2474-2
3/4P2474-1P2474-1P2474-1P2474-2
1P2474-1P2474-1P2474-1P2474-2
1-1/4P2474-1P2474-1P2474-1P2474-2
1-1/2P2474-1P2474-1P2474-2P2474-2P2474-2
2P2474-1P2474-1P2474-2P2474-2P2474-2
2-1/2P2474-1P2474-1P2474-2P2474-2P2474-2
3P2474-1P2474-2P2474-2P2474-3P2474-3P2474-3
3-1/2P2474-1P2474-2P2474-2P2474-3P2474-3P2474-3
4P2474-1P2474-2P2474-2P2474-3P2474-3P2474-3
5P2474-2P2474-3P2474-3P2474-3P2474-3P2474-4P2474-4
6P2474-2P2474-3P2474-3P2474-3P2474-3P2474-4P2474-4
8P2474-2P2474-3P2474-4P2474-4P2474-4P2474-4P2474-4
P2475 — Chart for Dimension A, p. 152 — 6 rows
Pipe size, in.No insulation1 in. (25.4 mm)1-1/2 in. (38.1 mm)2 in. (50.8 mm)2-1/2 in. (63.5 mm)3 in. (76.2 mm)4 in. (101.6 mm)
69-1/2 (241.3)10-1/4 (260.4)10-1/2 (266.7)10-3/4 (273.1)11 (279.4)11-3/8 (288.9)11-7/8 (301.6)
810-1/8 (257.2)*11 (279.4)11-3/8 (288.9)11-3/4 (298.5)12 (304.8)12-1/2 (317.5)
1010-3/4 (273.1)*11-5/8 (295.3)12 (304.8)12-1/4 (311.2)12-1/2 (317.5)13 (330.2)
1211-1/4 (285.8)*12-1/8 (308.0)12-1/2 (317.5)12-3/4 (323.9)13 (330.2)13-1/2 (342.9)
1411-5/8 (295.3)*12-1/2 (317.5)12-7/8 (327.0)13 (330.2)13-3/8 (339.7)14 (355.6)
1612-1/8 (308.0)*13 (330.2)13-3/8 (339.7)13-7/8 (352.4)14 (355.6)14-1/2 (368.3)
P2476 — Chart for Dimension A, p. 152 — 4 rows
Pipe size, in.1-1/2 in. (38.1 mm)2 in. (50.8 mm)2-1/2 in. (63.5 mm)3 in. (76.2 mm)4 in. (101.6 mm)
1613-7/8 (352.4)14 (355.6)14-1/2 (368.3)
1813-5/8 (346.1)14 (355.6)14-1/8 (358.8)14-1/2 (368.3)15 (381.0)
2014-1/8 (358.8)14-1/2 (368.3)14-3/4 (374.7)15 (381.0)15-1/2 (393.7)
2415-1/4 (387.4)15-1/2 (393.7)15-7/8 (403.2)16-1/8 (409.6)16-5/8 (422.3)

Dimension “A” is chosen from the pipe size and the insulation thickness, not printed as one figure per part. An empty cell is empty on the chart; * is the catalog’s own “Not used for this size”. P2476 has no “No Insulation” or “1 in.” column. Insulation thicknesses in millimeters are as the p. 151 chart header prints them; p. 150 and p. 152 print inches only. Pipe sizes are nominal. Source: Unistrut® General Engineering Catalog no. 17, p. 150–152 · Verified 2026-09-28

The same section also prints two pipe support brackets, drawn on an upright channel, and a pipe block.

Show the table — 3 rows
PartPrinted asPipe rangeCatalog plate thickness, in. (mm)Hole, in. (mm)Drawn dimensions, in. (mm)Upright in its tableCatalog page
P2481Pipe Support Bracket1/2 in. to 1-1/2 in.1/4 (6.4)9/16 (14.3)†3-1/2 (88.9) overall height; 4 (101.6) depthP1000, P1100, P2000p. 153
P2482Pipe Support Bracket2 in. to 3 in.3/8 (9.5)9/16 (14.3)†4-3/8 (111.1) overall height; 4 (101.6) depthP1000, P1100, P2000p. 153
P2243Pipe Block2 in. to 8 in. (50.8 to 203.2 mm)1/4 (6.4)†7/16 (11.1)1 (25.4) block height; 3 (76.2) lengthno table printedp. 153

† Not drawn for this part: the figure is the page’s own standard-dimensions note, which applies “Unless Otherwise Shown on Drawing”. The names of the drawn dimensions are ours; the figures are the page’s. P2243 carries the printed note “Clamp Requires bolt and channel nut. Sold seperately” [sic]. Plate thickness is the catalog reference part’s, not ours: the thickness we supply for these parts is confirmed at quotation. The upright column names the channel series that head the design-load table printed beside P2481 and P2482 — the uprights the catalog publishes figures for, not a list of every channel the part fits; the figures themselves are not reproduced. Source: Unistrut® General Engineering Catalog no. 17, p. 153 · Verified 2026-09-27

Joining the cross members

Where two channels meet, the joint is a fitting; the post bases are for where the support stands on the floor instead of hanging.

Show the table — 6 rows
FamilyPart numbersCatalog page
90° anglesP1026, P1723, P2626, P1281, P1282, P1283, P1068p. 94
Flat platesP1062, P1063, P1064, P1964, P2471, P2490, P1065, P1962p. 90 and 94
U-shapeP1047, P1048, P1043A, P1044p. 106–108
Z-shapeP1045p. 102
WingP2224, P2225p. 110
Post basesP2072, P2073p. 113

Families as grouped on Fittings, where each part’s dimensions and hole sizes are tabulated. Source: Unistrut® General Engineering Catalog no. 17, p. 90, 94, 102, 106, 107, 108, 110, and 113 · Verified 2026-07-15

Matching table & suffixes

Channel, nut and clamp: which part number goes with which

One table for the three-way match. Read along the row you are building.

Channel seriesTypeDepth, in. (mm)Nuts with spring, p. 78Nuts without spring, p. 79P2784 variant, p. 122
P1000, P1100, P2000Single1-5/8 (41.3)P1006-0832 through P1010; P1012S, P1023S, and P1024SP3016-0632, P3016-0832, P3016-1024, and P3016-1420; P3006-0832 through P3010; P1012, P1023, and P1024; P1006T1420, P1008T, and P1010TP2784-1
P3000Single1-3/8 (34.9)P1006-0832 through P1010; P1012S, P1023S, and P1024SP3016-0632, P3016-0832, P3016-1024, and P3016-1420; P3006-0832 through P3010; P1012, P1023, and P1024; P1006T1420, P1008T, and P1010TNot listed
P3300, P4000, P4100Single7/8 (22.2); 13/16 (20.6)P4006-0832 through P4010; P4012S and P4023SP3016-0632, P3016-0832, P3016-1024, and P3016-1420; P3006-0832 through P3009, P3013; P4012 and P4023; P1006T1420 and P1008T, P4010TNot listed
P5000Single3-1/4 (82.6)None listedP3016-0632, P3016-0832, P3016-1024, and P3016-1420; P3006-0832 through P3010; P1012, P1023, and P1024; P1006T1420, P1008T, and P1010TNot listed
P5500Single2-7/16 (61.9)P5506-0832 through P5510P3016-0632, P3016-0832, P3016-1024, and P3016-1420; P3006-0832 through P3010; P1012, P1023, and P1024; P1006T1420, P1008T, and P1010TNot listed
P1001, P1101, P2001Back-to-back3-1/4 (82.6)Not in the chartNot in the chartP2784-2
P5001, P5501Back-to-back6-1/2 (165.1); 4-7/8 (123.8)Not in the chartNot in the chartP2784-3

The nut columns are the “For Use With Channel” charts on p. 78–79, which list single channels only, so a back-to-back combination has no entry there. The P2784 column is the “For Use With” column of its table on p. 122; “Not listed” means the catalog lists no variant for that series, not that we did not look. P3001, P3301, P4001, and P4101 appear in neither and are left out. Threads for each nut family are in the nut table above; depth is the catalog figure from each series page. Source: Unistrut® General Engineering Catalog no. 17, p. 78–79 (nuts), p. 122 (P2784), p. 25, 32, 36, 40, 43, 46, 50, 53, and 56 (depths) · Verified 2026-09-28

The suffix rules

A part number carries up to three suffixes, from three different systems, and one system’s letters do not carry over to another.

Show the table — 10 rows
SuffixSystemMeansApplies toCatalog page
HSHole pattern9/16 in. (14.3 mm) round holes at 1-7/8 in. (47.6 mm) on centerChannel: all nine single seriesp. 25 (size), p. 24 (series)
THole pattern1-1/8 x 9/16 in. (28.6 x 14.3 mm) slots at 2 in. (51 mm) on centerChannel: all nine single seriesp. 25 (size), p. 24 (series)
KOHole pattern7/8 in. (22.2 mm) knockouts at 6 in. (152.4 mm) on centerChannel: all except P3300, P4000, and P4100; steel onlyp. 25 (size), p. 24 (series)
SLHole pattern3 x 13/32 in. (76.2 x 10.3 mm) slots at 4 in. (101.6 mm) on centerChannel: all nine single series; steel onlyp. 25 (size), p. 24 (series)
DSHole pattern2-3/4 x 7/8 in. (69.9 x 22.2 mm) slots at 3-1/2 in. (88.9 mm) on centerChannel: P1000 only; steel only; the panel prints “Pipe Clamps can be Mounted on Both Sides”p. 25 (size), p. 24 (series)
H3Hole pattern9/16 in. (14.3 mm) round holes at 1-7/8 in. (47.6 mm) on centerChannel: P1000 only; steel only; same printed size and spacing as HS; the catalog does not say in words how the two differp. 25 (size), p. 24 (series)
GR, PG, EG, HG, PLFinishPerma-Green II (GR) · Electro-galvanized (EG), conforming to ASTM B633 Type III SC1 · Hot-dipped galvanized (HG), conforming to ASTM A123 or A153 (hardware) · plain (PL) — as p. 137, the pipe and conduit supports page, prints them. Pre-galvanized (PG), conforming to ASTM A653 G90, is printed on p. 21 only, for channel.GR, HG, and PL: channel, fittings, pipe and conduit supports, and electrical fittings; PG: channel; EG: fittings, pipe and conduit supports, and electrical fittingsp. 21, 85, 137, and 161
E, CC, AL, SS or ST, PCMaterialSteel Strap, Everdur Hardware (E); Copper Coated Steel Strap & Hardware (CC); Aluminum (AL); Stainless Steel 304 or 316 (SS or ST); Plastic Coated Steel Straps (PC) — written after a space, as in P1109 EThe P1109, P1211, P1425, and P2024 pipe clamp seriesp. 137
NCoating“Plastic Coated (‘N’ Suffix)”, as in J1205NJ hangers J1205 through J1280p. 149
PAPart-number endingPrinted on every UB part number; the page does not say what it stands forUB1/2PA through UB12PA — not for metal framingp. 148

Hole-pattern sizes and spacing are printed on p. 25, each on a P1000 panel; which series each code is offered on, and the “Steel Only” note, are the p. 24 selection chart. The same six codes, next to the rest of the channel data, are on Channel. What each finish standard requires, and which finishes we quote, are on Finishes. Source: Unistrut® General Engineering Catalog no. 17, p. 21, 24, 25, 85, 137, 148, 149, and 161 · Verified 2026-09-28

What we do not publish

What we do not publish, and what we can arrange instead

There is no load figure on this page, and that is a position rather than an omission. The catalog publishes its design load data under conditions it prints itself: “All parts drawings illustrate only one application of each fitting. In most cases many other applications are possible”, and design load data “is based on the ultimate strength of the connection” with a stated safety factor, “unless otherwise noted” (p. 85) — and the pipe and conduit supports section states its own, different factor on p. 137. The fitting tables on p. 89 are tighter still: they hold only “when used in position shown”, with both ends of the beam supported, and with a P1010 nut and a 1/2 in. bolt.

So a printed rating is a number for one reference part, in one drawn position, with one nut and one bolt. A trapeze is a whole assembly with a span, a connection detail and a load path, and its capacity is not the smallest number on its parts list. On top of that, what we quote is a candidate substitute made to order against the catalog number, which means the reference part’s published figures are not ours to repeat.

What we can do instead, when a submittal needs numbers: tell us the span and the connection detail, and we price the evidence rather than assert it — measured coating thickness, mill certificate, and a third-party load test on the actual parts, arranged per order and confirmed at quotation. Until that test exists we publish nothing, which is why the catalog figures on our clamp and nut pages are labeled as the catalog’s throughout.

Conditions quoted from Unistrut® General Engineering Catalog no. 17, p. 85, 89 and 137. The candidate-substitute position and the list of tests not yet run are our own · Verified 2026-09-28

What we cannot quote for this assembly

Quote

Frequently asked questions

What parts make up a strut trapeze pipe support?

Five layers, top to bottom: a beam clamp onto the structural steel, a threaded rod or a rod-suspended hanger, a length of channel as the cross member, channel nuts, and a pipe clamp around the pipe. All five are quoted as a set. The rod layer is supplied to order as fully threaded rod, rod coupling, and hex nut, 3/8 to 3/4 in. and M10 to M20; it is not a catalog part number and is quoted as commodity hardware with the set. Where a part on this page takes rod outside that range (J1280, J1280N, M30, and M31), that rod is confirmed at quotation. Clevis hangers and rod eye nuts are not in the catalog pages this site draws on; list them in the inquiry and they are confirmed at quotation.

Do I need a rigid conduit clamp or an EMT clamp?

Read the pipe, not the drawing. Rigid conduit and EMT of the same trade size have different outside diameters, so each takes its own clamp series: P1109 through P1126 for rigid, P1425 through P1431 for EMT. From 2-1/2 in. through 4 in., the catalog's EMT table lists the rigid clamps P1118 through P1121.

Which beam clamp mounts channel directly to a steel beam?

P2784, and it is the only one in the catalog beam-clamp pages that takes channel rather than a rod. It comes in three variants matched to the channel depth: P2784-1 for P1000, P1100, and P2000; P2784-2 for P1001, P1101, and P2001; P2784-3 for P5001 and P5501.

Can I use the UB Cush-A-Clamp U-bolts with strut channel?

No. The catalog says so itself on p. 148: the UB assembly U-bolt series is not intended for use with metal framing components, because of the length of the thread. They are listed here so that the series is not mistaken for a strut part.

Which channel does the catalog use for a sprinkler pipe trapeze?

Its selection tables on p. 156 and 157 pick from eight series: P1000, P3000, P5000, and P5500 as single channels and P1001, P3001, P5001, and P5501 as back-to-back. Which one depends on the trapeze span, the nominal pipe diameter, and whether the pipe is Schedule 10 or 40; the tables on this page reproduce the selections cell for cell, without the loading assumptions behind them.

Get the parts for a support quoted

Send the layers you need and we quote them as a list of part numbers, not as a designed assembly. We do not size supports and we do not certify them; what we do is source the parts against the catalog number. We quote the complete set: beam clamp, rod, channel, nuts and pipe clamp. We reply within one business day (Asia/Shanghai, UTC+8).

  • Beam clamp — and whether it takes channel or a rod
  • Rod — diameter and length, 3/8–3/4 in. or M10–M20, and whether couplings and hex nuts go with it
  • Channel series and length for the cross member
  • Channel nut thread size
  • Pipe clamp — rigid or EMT, and the pipe size
  • Finish, quantity and destination

No minimum order · 5–7 business days ex-factory · Reply within one business day (Asia/Shanghai, UTC+8) · Finishes: plain, EG, HDG, stainless

Request a quote for these parts

Threaded rod, rod couplings and hex nuts are quoted with the set as commodity hardware, not as catalog part numbers; clevis hangers and rod eye nuts can be listed in the inquiry and confirmed at quotation. Prefer email? Write to contact@channelstrut.com.

Unistrut, B-Line, Superstrut, Power-Strut and Haydon, and the part numbers published under them, are trademarks or trade names of their respective owners. ChannelStrut is not affiliated with, authorized by, endorsed by or a distributor for any of them. Those brand names and part numbers are used here only to identify the products referred to.

ChannelStrut is run by Alex, a hardware sourcing specialist based in Fujian, China. We do not manufacture these parts — we source them from the mills that produce them. More on how the data is built: About.

Sheet NoPIPE-SUPPORT-01
Rev2026-09-28
SourceUNISTRUT® CATALOG NO. 17
NoteFOR REFERENCE ONLY — VERIFY WITH MFR SPEC
